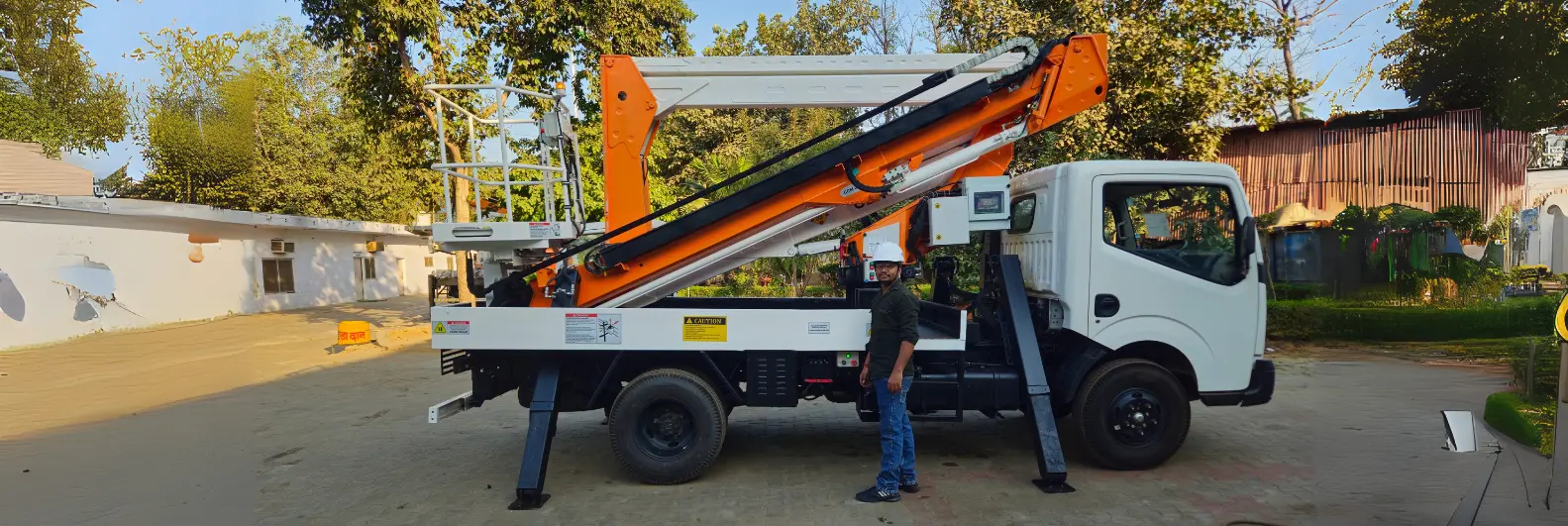

Truck Mounted Aerial Work Platform

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

manlifter 1
manlifter 2

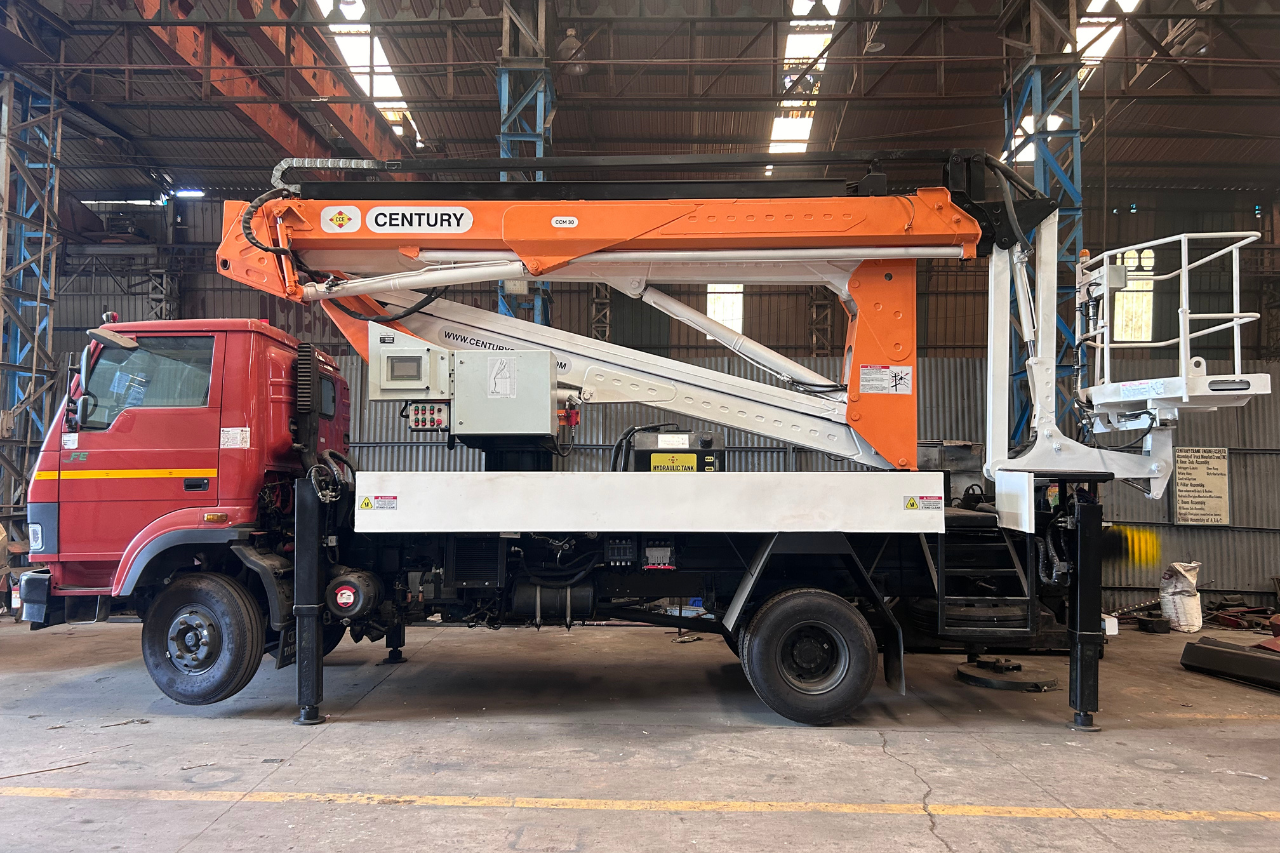

manlifter 3

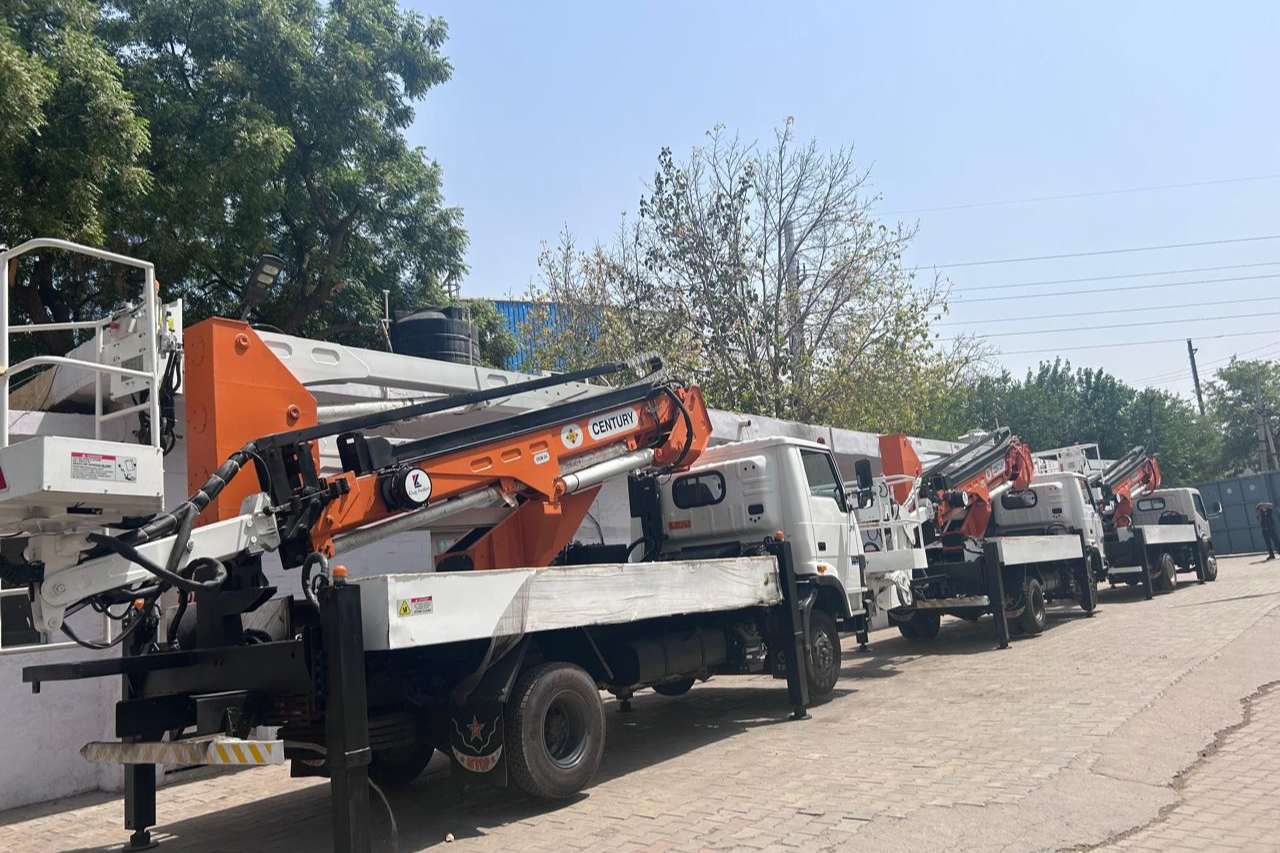

manlifter 5
manlifter 4
manlifter 6

Description

A Man Lifter is a sophisticated aerial work platform designed to provide safe and efficient access to elevated work areas. It is equipped with a hydraulic or mechanical boom that extends vertically or horizontally and supports a platform or basket where workers can perform their tasks. Man Lifters are commonly used in a variety of industries where workers need to access elevated areas, including construction, maintenance, and manufacturing.

At the heart of a Man Lifter is its advanced safety features. The platform or basket is typically enclosed by guardrails to prevent falls or accidents. In addition, Man Lifters often come with emergency shut-off switches and other safety features that ensure that workers remain safe at all times while operating the equipment.

Man Lifters come in a range of models, each designed to meet the specific requirements of different applications. Self-propelled models are ideal for indoor use, while trailer-mounted models offer greater mobility for outdoor applications. Man Lifters are also available in a range of heights, with some models capable of reaching heights of up to 150 feet.

Key Points

Previous slide
Next slide
  • Truck Mounted Cranes Telescopic Up To 20T (1 straight Boom,2Knuckle Boom) EOT Cranes, Hoists and Grab Buckets
  • Double Girder EOT from 0.5 T to 200 T and Goliath Cranes of capacity Up to 150 T.
  • Single Grirder EOT,HOT and Under slung Cranes of capacity Upto 25 T.
  • Jib Cranes from 0.5 T to 10 T Electic Wire Rope Hoists from 0.5 T to 75 T
  • Electrical Trolleys up to 100 T.
  • Chain Pulley Block & Manual Hoists 500Kgs to 25 T
  • Grab Buckets up to 15 Cu Mtr Capacity
  • Low Head room Hoist & cranes with headroom as low as 600 mm
  • Good Lifts up to 10 T.

Truck Mounted Aerial Work Platform Manufacturer In India

  • At Century Cranes, we understand the importance of providing safe and reliable equipment to ensure that workers can perform their tasks efficiently and without risk. That’s why we are committed to manufacturing the best Truck Mounted Aerial Work Platform in India.
  • Our Truck Mounted Aerial Work Platform are designed with safety and efficiency in mind. They are equipped with advanced features such as hydraulic controls, automatic leveling, and emergency shut-off systems to ensure maximum safety and control during operation. Our Man Lifters also have a sturdy and stable base to provide stability while in use, ensuring that workers are safe and secure at all times.
  • In addition to safety, our Truck Mounted Aerial Work Platform are designed for maximum efficiency. They are equipped with features such as quick set-up, smooth operation, and easy maneuverability, allowing workers to perform their tasks quickly and efficiently. Our Man Lifters are also highly customizable to meet the specific needs of different industries and applications, making them ideal for a wide range of uses.
  • At Century Cranes, we use only the highest quality materials and components in the manufacture of our Truck Mounted Aerial Work Platform. We have a dedicated team of engineers and technicians who work tirelessly to ensure that each Man Lifter we produce is of the highest quality and meets our strict quality standards. This commitment to quality has made us one of the most trusted and reliable manufacturers of Man Lifters in India.
  • So, if you are looking for a safe and reliable way to access elevated work areas, our Truck Mounted Aerial Work Platform are the perfect choice. With their advanced safety features, efficient operation, and high-quality construction, they are the ideal tool for a wide range of industries and applications. Choose Century Cranes for the best Man Lifters in India, and experience the difference in safety and efficiency that our equipment can provide.

Our Products

Get 25% discount on maintenance services

Book now!

Our Catalogue

Download Now!
Why choose us

Tractor Mounted Cranes Applications

  • At Century Cranes, we understand the importance of providing safe and reliable equipment to ensure that workers can perform their tasks efficiently and without risk. That’s why we are committed to manufacturing the best Man Lifters in India.
  • Our Man Lifters are designed with safety and efficiency in mind. They are equipped with advanced features such as hydraulic controls, automatic leveling, and emergency shut-off systems to ensure maximum safety and control during operation. Our Man Lifters also have a sturdy and stable base to provide stability while in use, ensuring that workers are safe and secure at all times.
  • In addition to safety, our Man Lifters are designed for maximum efficiency. They are equipped with features such as quick set-up, smooth operation, and easy maneuverability, allowing workers to perform their tasks quickly and efficiently. Our Man Lifters are also highly customizable to meet the specific needs of different industries and applications, making them ideal for a wide range of uses.
  • At Century Cranes, we use only the highest quality materials and components in the manufacture of our Man Lifters. We have a dedicated team of engineers and technicians who work tirelessly to ensure that each Man Lifter we produce is of the highest quality and meets our strict quality standards. This commitment to quality has made us one of the most trusted and reliable manufacturers of Man Lifters in India.
  • So, if you are looking for a safe and reliable way to access elevated work areas, our Man Lifters are the perfect choice. With their advanced safety features, efficient operation, and high-quality construction, they are the ideal tool for a wide range of industries and applications. Choose Century Cranes for the best Man Lifters in India, and experience the difference in safety and efficiency that our equipment can provide.
Construction

Efficiently take care of creation substances, installation of structural additives, and resources in constructing erection.

Learn more
Utilities

Perform preservation obligations, repair streetlights, and signage, or set up software poles without problems. Explore the world of unequaled performance and versatility with our tractor set-up cranes.

Learn more
Agriculture and Forestry

Facilitate lifting of heavy masses such as logs, machinery, and bales, streamlining agricultural and forestry operations.

Learn more
Waste Management and Recycling

These cranes are used in waste control centers and recycling centers to handle bulky waste substances, type recyclables, and cargo them onto vehicles for transportation.

Learn more
Utilities and Telecommunications

These machines are utilized for keeping electricity strains, streetlights, and telecommunication infrastructure. Their agility and attain enable people to get the right of entry to elevated points and whole renovation duties successfully.

Learn more
Roofing and Building Maintenance

In the roofing and building protection sector, knuckle broom cranes are used to raise substances and systems to multiply painting areas, making repairs and installations greater green and more secure.

Learn more
Why choose us

Truck Mounted Crane Applications with Special Attachments

Each section below highlights how your Truck Mounted Cranes improve efficiency and reduce lifting time across different material handling tasks, with special attachments used where applicable.

CCL-13M
CCL-16M
CCL-24M
CCL-26M
CCL-27M
CCL-30M

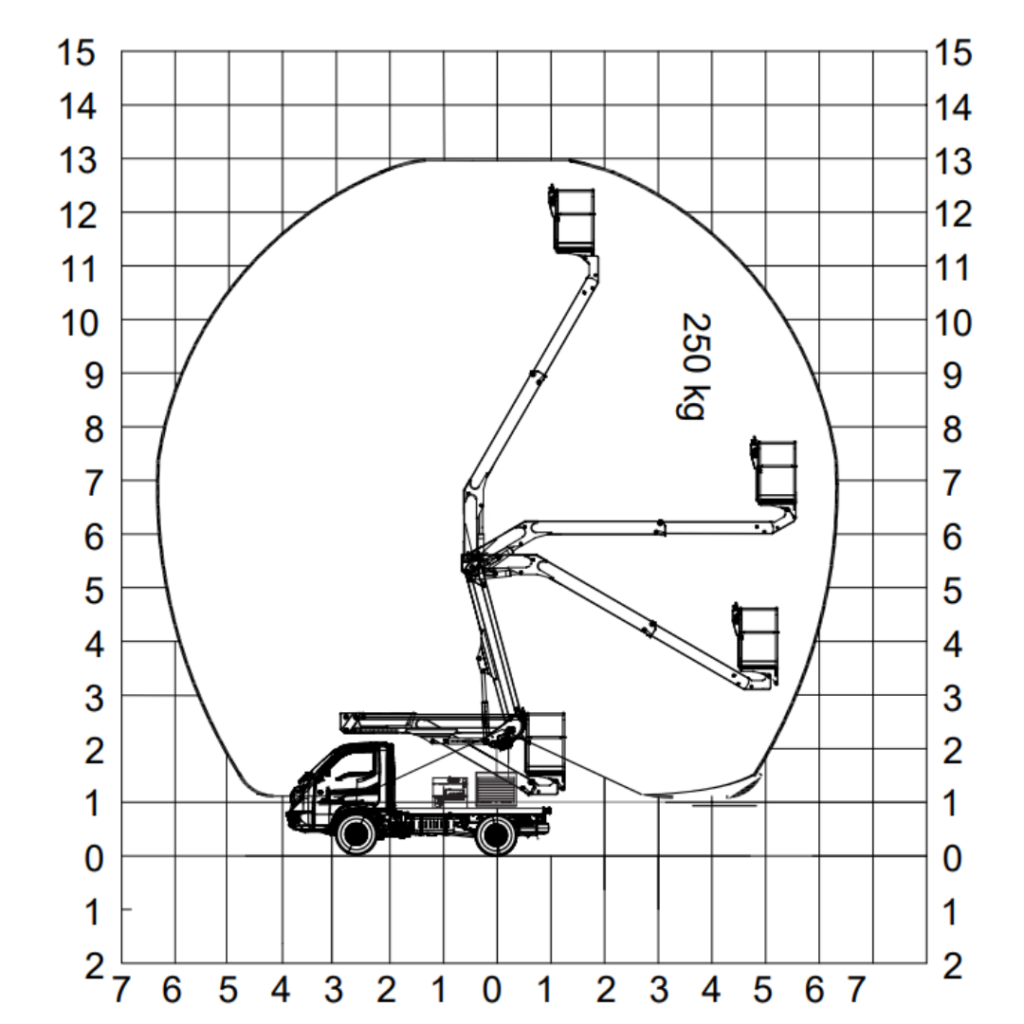

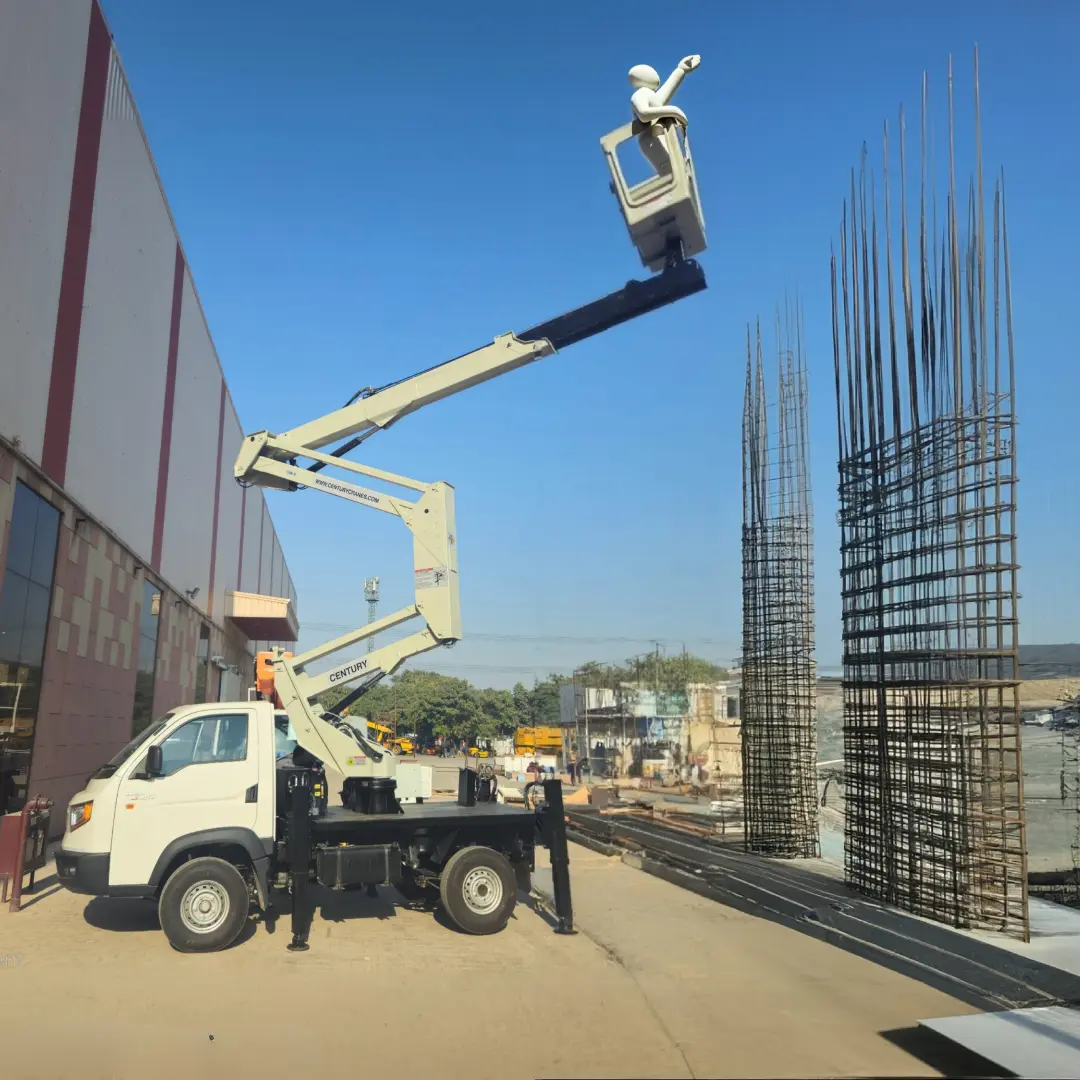

CCL - 13M

Performance Features:

  • Operating Height: 13 meters
  • Bucket Bottom Height (from Ground): 11 meters
  • Maximum Capacity: 250 kg
  • Control: Thru Lever
  • Bucket Rotation: Fixed
  • Base Rotation: 360 degrees continuous

Materials:

  • Bucket Material: Fiber

Safety Features:

  1. Auto Cut-off: Prevents overload.
  2. Leg Deployment Indicator: Ensures proper setup.
  3. Manual Hand Pump: For emergency recovery.
  4. Emergency Cut-off: Located in the bucket.
  5. Alarm at Base: Activated from the bucket.
  6. Return Filter Choke Indicator: Monitors hydraulic system health.
  7. HMI Display: For fault identification.
  8. Manual Interlock: Prevents accidental outrigger activation when the boom is extended.
  9. Beacon on Bucket: (Without sound) for visibility.

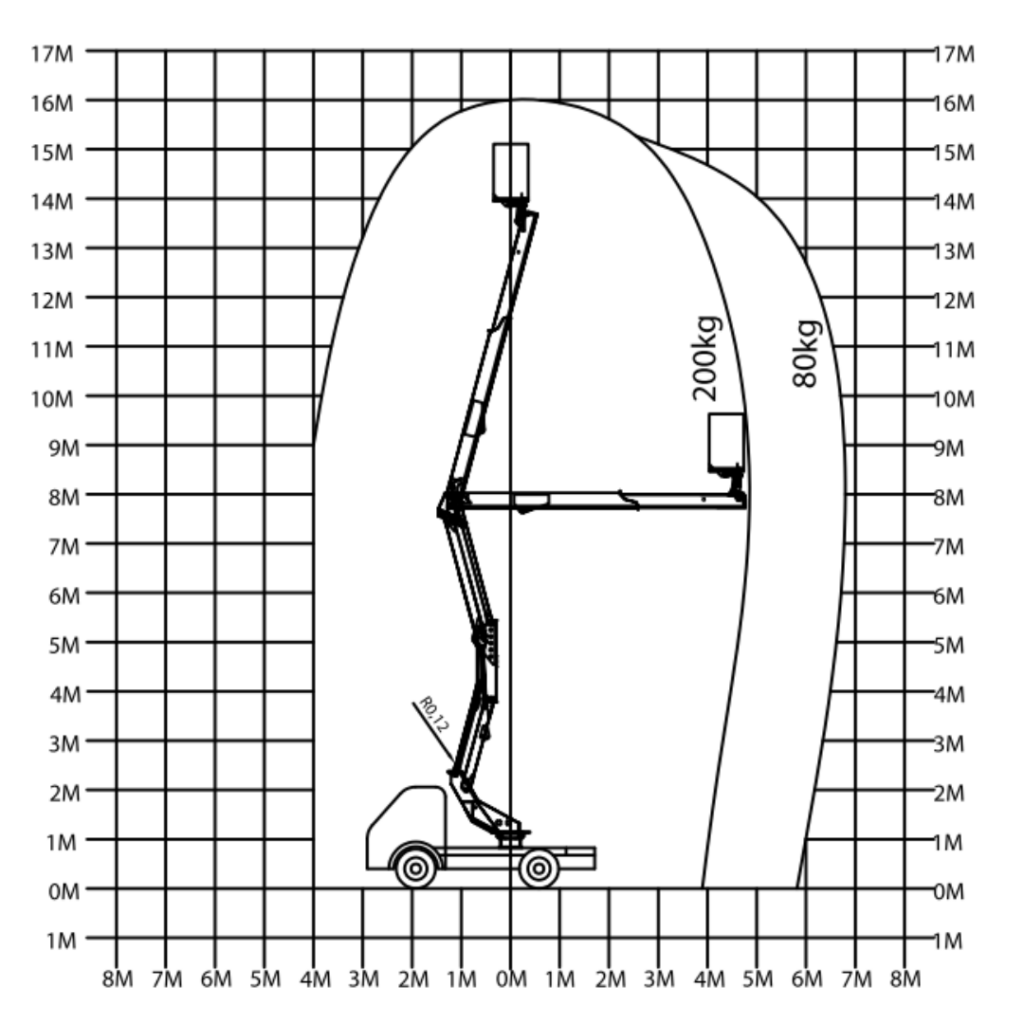

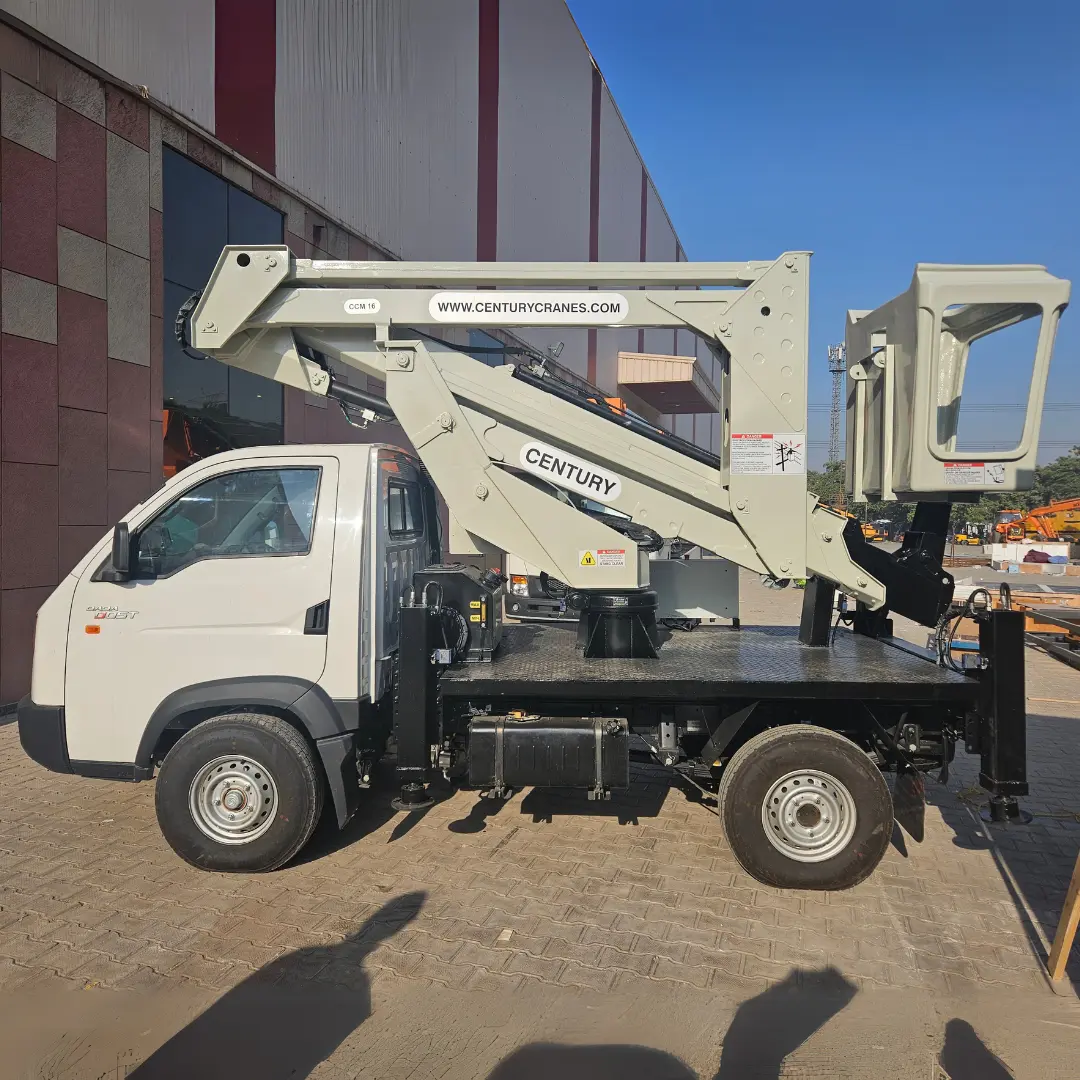

CCL - 16M

Performance Features:

  • Operating Height: 16 meters
  • Bucket Bottom Height (from Ground): 14 meters
  • Maximum Capacity: 250 kg
  • Control: Thru Lever
  • Bucket Rotation: Fixed
  • Base Rotation: 360 degrees continuous

Materials:

  • Bucket Material: Fiber

Safety Features:

  1. Auto Cut-off: Prevents overload.
  2. Leg Deployment Indicator: Ensures proper setup.
  3. Manual Hand Pump: For emergency recovery.
  4. Emergency Cut-off: Located in the bucket.
  5. Alarm at Base: Activated from the bucket.
  6. Return Filter Choke Indicator: Monitors hydraulic system health.
  7. HMI Display: For fault identification.
  8. Manual Interlock: Prevents accidental outrigger activation when the boom is extended.
  9. Beacon on Bucket: (Without sound) for visibility.

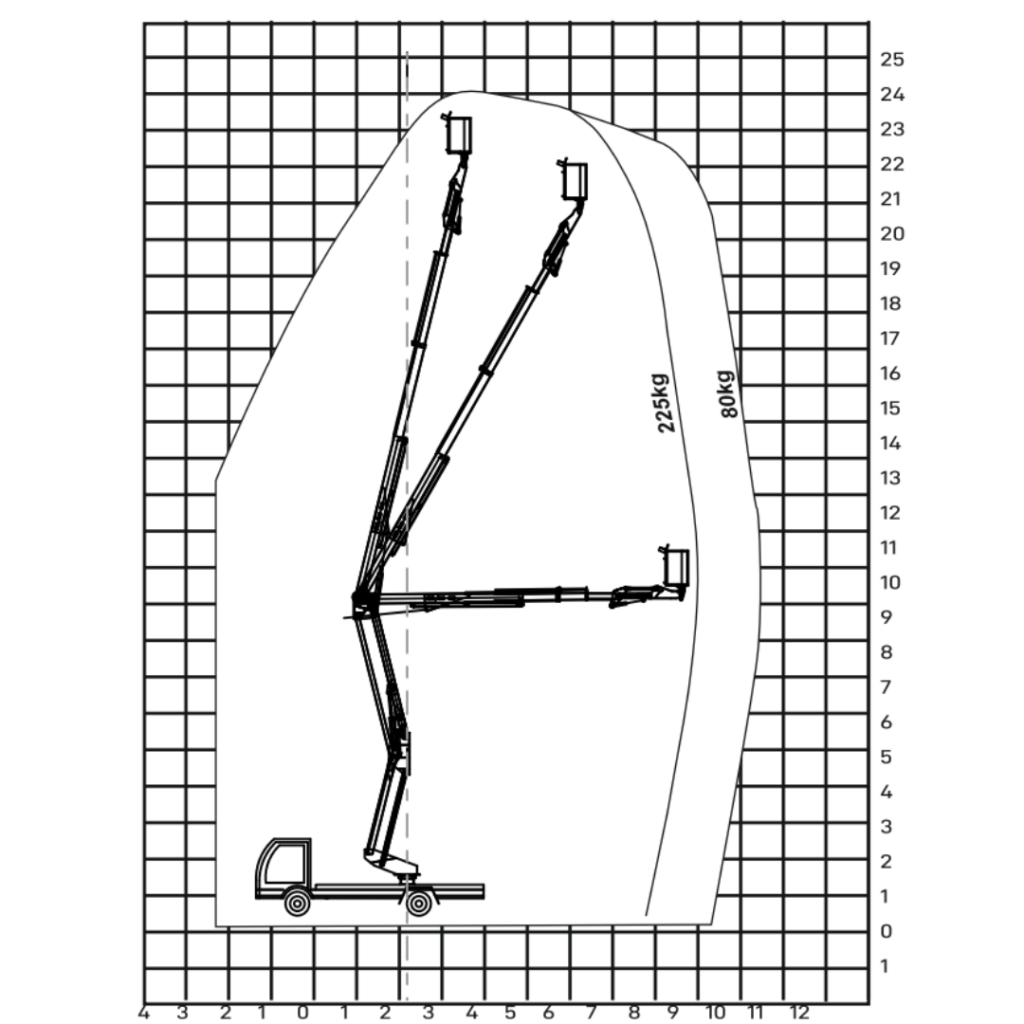

CCL - 24M

Performance Features:

  • Operating Height: 24 meters
  • Bucket Bottom Height (from Ground): 22 meters
  • Maximum Capacity: 225 kg
  • Control: Thru Lever
  • Bucket Rotation: ± 90 degrees
  • Base Rotation: 360 degrees continuous

Materials and Dimensions:

  • Bucket Material: Aluminum + Steel
  • Bucket Dimensions: 1400 x 700 x 1100 mm

Safety Features:

  1. Auto Cut-off: Prevents overload.
  2. Safe Zone Operation: Operation allowed only in safe zones.
  3. Leg Deployment Indicator: Ensures proper setup.
  4. Manual Hand Pump: For emergency recovery.
  5. Emergency Cut-off: Located in the bucket.
  6. Alarm at Base: Activated from the bucket.
  7. Return Filter Choke Indicator: Monitors hydraulic system health.
  8. HMI Display: For fault identification.
  9. Angle of Mother Boom Displayed: Provides boom angle information.
  10. Machine Level Indicator: (Electronic & Manual) with cut-off if level is not achieved.
  11. Manual Interlock: Prevents accidental outrigger activation when the boom is extended.
  12. Operator Chair: Allows operator to sit during operation, reducing fatigue.
  13. Beacon on Bucket: (Without sound) for visibility.
  14. Proximity Sensor: On bucket, alarms when near obstructions (100mm distance).
  15. Rear View Camera: Provides visibility behind the unit.

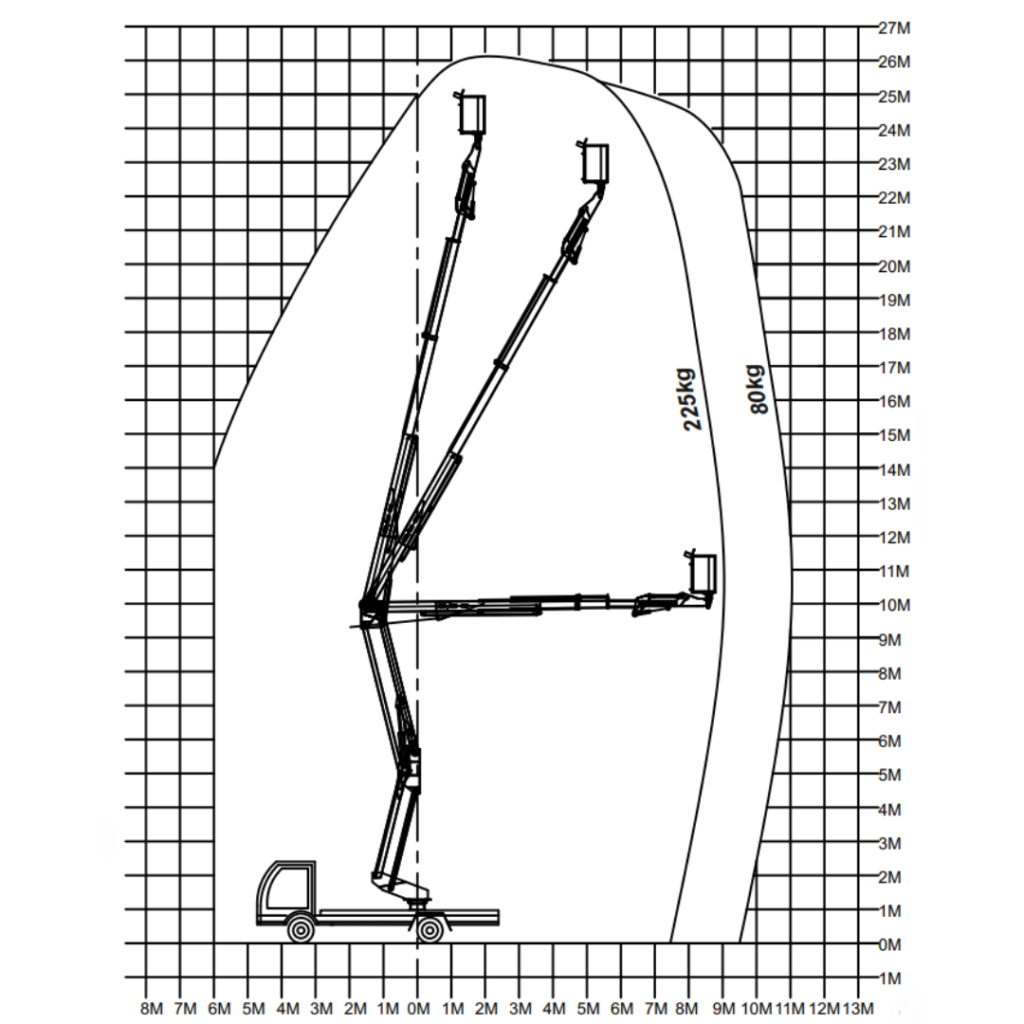

CCL - 26M

Performance Features:

  • Operating Height: 26 meters
  • Bucket Bottom Height (from Ground): 24 meters
  • Maximum Capacity: 225 kg
  • Control: Thru Lever
  • Bucket Rotation: ± 90 degrees
  • Base Rotation: 360 degrees continuous

Materials and Dimensions:

  • Bucket Material: Aluminum + Steel
  • Bucket Dimensions: 1400 x 700 x 1100 mm

Safety Features:

  1. Auto Cut-off: Prevents overload.
  2. Safe Zone Operation: Operation allowed only in safe zones.
  3. Leg Deployment Indicator: Ensures proper setup.
  4. Manual Hand Pump: For emergency recovery.
  5. Emergency Cut-off: Located in the bucket.
  6. Alarm at Base: Activated from the bucket.
  7. Return Filter Choke Indicator: Monitors hydraulic system health.
  8. HMI Display: For fault identification.
  9. Angle of Mother Boom Displayed: Provides boom angle information.
  10. Machine Level Indicator: (Electronic & Manual) with cut-off if level is not achieved.
  11. Manual Interlock: Prevents accidental outrigger activation when the boom is extended.
  12. Operator Chair: Allows operator to sit during operation, reducing fatigue.
  13. Beacon on Bucket: (Without sound) for visibility.
  14. Proximity Sensor: On bucket, alarms when near obstructions (100mm distance).
  15. Rear View Camera: Provides visibility behind the unit.

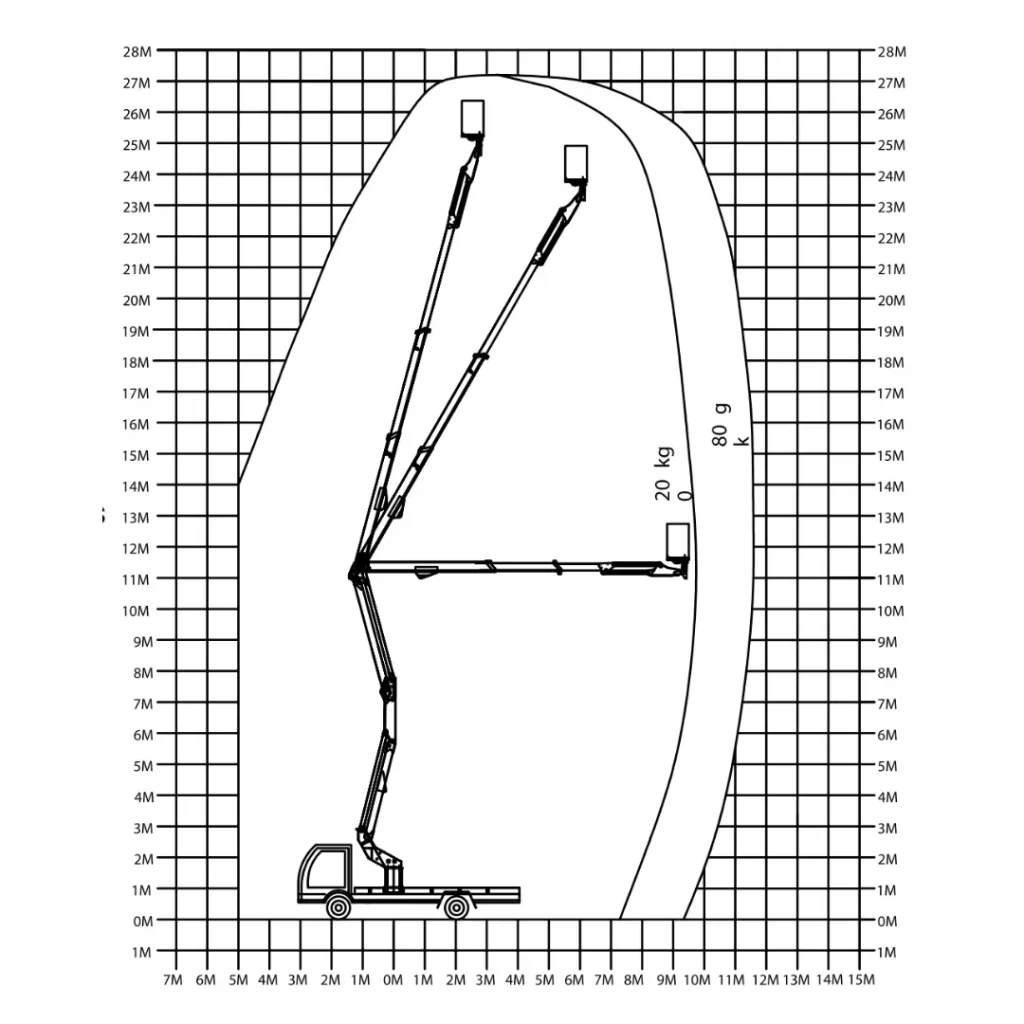

CCL - 27M

Performance  Features:

  • Operating Height: 27 meters
  • Bucket Bottom (From Ground): 25 meters
  • Max Capacity: 225 kg
  • Control: Thru Lever & Buttons
  • Bucket Rotation: ± 90 degrees
  • Base Rotation: 360 degrees continuous
  • Bucket Material: Aluminum + Steel
  • Bucket Dimension (mm): 1400 x 700 x 1100

Other Safety Features:

  1. Auto Cut off: Prevents overload.
  2. Safe Zone Operation: Operation allowed only in safe zones.
  3. Leg Deployment Indicator: Shows when legs are properly deployed.
  4. Manual Hand Pump: For emergency recovery.
  5. Emergency Cut off: In the bucket.
  6. Alarm at Base: Activated from the bucket.
  7. Return Filter Choke Indicator: Monitors hydraulic system.
  8. HMI Display: For fault identification.
  9. Angle of Mother Boom Displayed: Shows boom angle.
  10. Machine Level Indicator: (Electronic & Manual) with cut-off.
  11. Manual Interlock: Prevents accidental outrigger activation.
  12. Operator Chair: For operator comfort.
  13. Beacon on Bucket: (Without sound).
  14. Proximity Sensor: Alarms when near obstructions (100mm).
  15. Rear View Camera: For enhanced visibility.

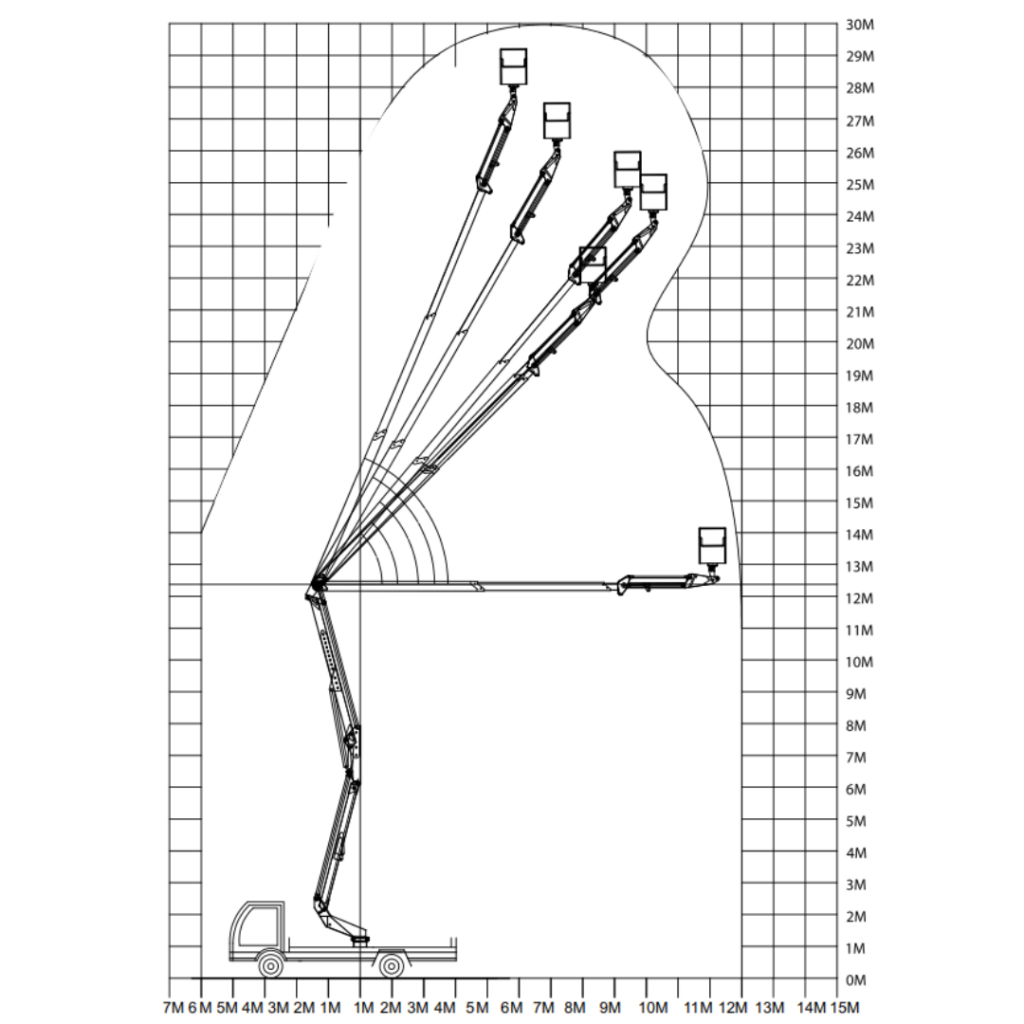

CCL - 30M

Performance Features:

  • Operating Height: 30 meters
  • Bucket Bottom (From Ground): 28 meters
  • Max Capacity: 225 kg
  • Control: Thru Lever
  • Bucket Rotation: ± 90 degrees
  • Base Rotation: 360 degrees continuous

Materials and Dimensions:

  • Bucket Material: Aluminum + Steel
  • Bucket Dimension (mm): 1400 x 700 x 1100

Other Safety Features:

  1. Auto Cut off: Prevents overload.
  2. Safe Zone Operation: Operation allowed only in safe zones.
  3. Leg Deployment Indicator: Shows when legs are properly deployed.
  4. Manual Hand Pump: For emergency recovery.
  5. Emergency Cut off: In the bucket.
  6. Alarm at Base: Activated from the bucket.
  7. Return Filter Choke Indicator: Monitors hydraulic system.
  8. HMI Display: For fault identification.
  9. Angle of Mother Boom Displayed: Shows boom angle.
  10. Machine Level Indicator: (Electronic & Manual) with cut-off.
  11. Manual Interlock: Prevents accidental outrigger activation.
  12. Operator Chair: For operator comfort.
  13. Beacon on Bucket: (Without sound).
  14. Proximity Sensor: Alarms when near obstructions (100mm).
  15. Rear View Camera: For enhanced visibility.

Brick Handling

  • Description: Brick handling requires precise lifting and placement, and our special brick-grabbing attachment drastically reduces handling time. This attachment is designed to securely hold and stack brick bundles, ensuring a fast and efficient unloading process with minimal effort and time.
Key Features:
  • Brick-grabbing attachment for quick and secure loading/unloading.
  • Efficient grip that reduces handling time.
  • Adjustable boom for maneuvering in tight spaces.
  • Enhanced stability and safety during operation.

Marble Loading

  • Description: Marble loading requires extreme care and precision. Our Truck Mounted Cranes are designed to efficiently lift and load heavy marble slabs with minimal handling time. With features such as high reach and powerful lifting capabilities, the crane ensures that marble is loaded safely and quickly, reducing operational downtime.
Key Features:
  • High reach for safely lifting heavy marble slabs.
  • Anti-sway control for smooth, damage-free handling.
  • Quick setup for reduced lifting time.
  • Flexible boom configurations to handle marble loading in various environments.

Wood Handling

  • Description: Handling wood requires strength and precision. Our log grapple attachment enables fast, efficient loading and unloading of logs or timber. This attachment is designed to securely grip and maneuver large, heavy wood pieces, speeding up the entire process while minimizing operator effort.
Key Features:
  • Log grapple attachment for swift and secure handling of large wood pieces.
  • Quick positioning for logs without causing damage.
  • Perfect for lumber yards, sawmills, and construction sites.
  • Reduced time spent on loading and unloading timber.

Material Handling

  • Description: Our material clamshell bucket attachment is perfect for handling a wide variety of materials, from steel beams to bulk containers. The attachment’s ability to efficiently scoop and carry materials reduces handling time and maximizes productivity on construction or industrial sites.
Key Features:
  • Material clamshell bucket for handling a variety of materials.
  • Fast and efficient material transfer, reducing operational downtime.
  • Specialized grip for different material types.
  • Time-efficient for large-scale material handling.

Scrap Handling

  • Description: In scrap handling, speed and safety are paramount. Our scrap grapple attachment allows for quick, secure handling of scrap metal. The attachment is designed to efficiently grip and move large quantities of scrap, reducing time spent on each lift and enhancing productivity in scrapyards and recycling plants.
Key Features:
  • Scrap grapple attachment for fast and secure handling of scrap metal.
  • Quick loading and unloading, minimizing downtime.
  • Increased lifting speed for heavy scrap materials.
  • Designed for use in scrapyards, recycling plants, and demolition sites.

Sugarcane Handling

  • Description: Handling sugarcane requires specialized equipment to deal with its bulky and sometimes delicate nature. Our sugarcane grabber attachment significantly reduces lifting time by allowing fast, precise handling of sugarcane bundles without damaging the stalks.
Key Features:
  • Sugarcane grabber attachment for fast and safe lifting.
  • Reduces lifting time by securely holding large bundles.
  • Ideal for use in both farms and processing units.
  • Designed to prevent damage during handling.
100%

360° Movable Crane

Since the crane provides 360 degree continues full circle movement, it is very easy to load and unload bricks or blocks in that diameter area.

100%

Easy and Safe Operation

Operation is vey easy and safe through levers, Thus the truck driver itself can operate the crane very easily.

100%

Maximum Speed of 60 Km/hr

While during the transportation of the truck Crane, The truck crane can easily travel at a maximum speed of 60 km/hr through the roads.

100%

Top Seat Operation

The Brick Handling Crane Comes with a top placed operator seat which provides a clear and better visibility to the operator while loading or unloading the bricks.

Send Us a message

Have Questions? Send Us a Message!

Have a question or need assistance? Send us a message, and our team will get back to you as soon as possible. We’re here to help!

In Feb 1994 we started our operations in Old Faridabad . Our initial products included Fabrications for KG Khosla, Conveyors and fabrications.
Facebook-f Linkedin-in Instagram Youtube
Company
Products
Plant I: Get In Touch
Plant II: Get In Touch
Newsletter
Sign up our newsletter to get update information, news and free insight.
